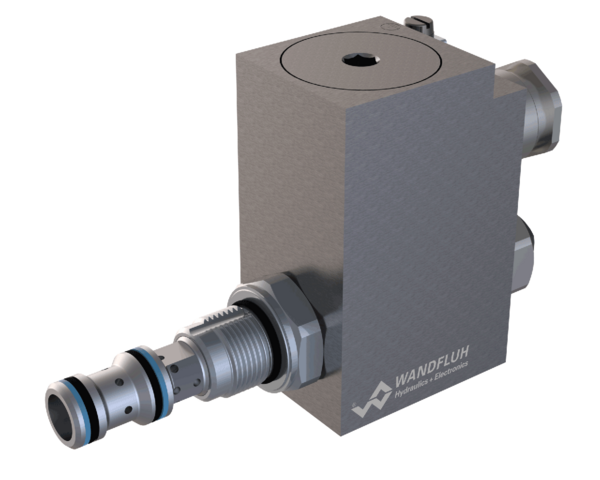

Ex d Explosionsgeschützte Proportional-Druckregelpatrone M22x1,5, Wandfluh MPBPM22
Ex d Explosionsgeschützte Proportional-Druckregelpatrone M22x1,5, Wandfluh MPBPM22
Art
Proportional
Hydraulikfunktion
Druckregelventil
Größe
M22x1,5
Qmax
20 L/min
Pmax
350 bar
Betätigung
Ex d-Magnet
Zertificate
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Ausführung
Standard
Schutzart
IP65 / IP66 / IP67
Dichtsatz
251.3106 (NBR) / 251.3115 (FKM)
Ventilkonfigurator
MPBPM22
-
-
/
/
-
-
| Type code examples | Internal number | Code on cartridge | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | MPBPM22-20-G24/L15 | 617.3590 | MPBPM22-20/L15 | U= 24 VDC |
| Wandfluh | MPBPM22-20-X5/L15 | 617.3671 | MPBPM22-20/L15 | Without coil |
| Wandfluh | MPBPM22-80-G24/L9 | 617.3625 | MPBPM22-80/L9 | U= 24 VDC |
| Wandfluh | MPBPM22-95-G24/L15-D1 | 617.3570 | MPBPM22-95/L15-D1 | U= 24 VDC |
| Wandfluh | MPBPM22-95-y-G24/L15/MA | 617.3687 | MPBPM22-95-y/L15/MA | U= 24 VDC |
| Wandfluh | MPBPM22-95-y-G24/L15-Z604 | 617.3670 | MPBPM22-95-y/L15-Z604 | U= 24 VDC |
| Wandfluh | MPBPM22-135-G24/L15-M248 | 617.3678 | MPBPM22-135/L15-M248 | U= 24 VDC |
| Wandfluh | MPBPM22-235-G24/L15 | 617.3667 | MPBPM22-235/L15 | U= 24 VDC |
