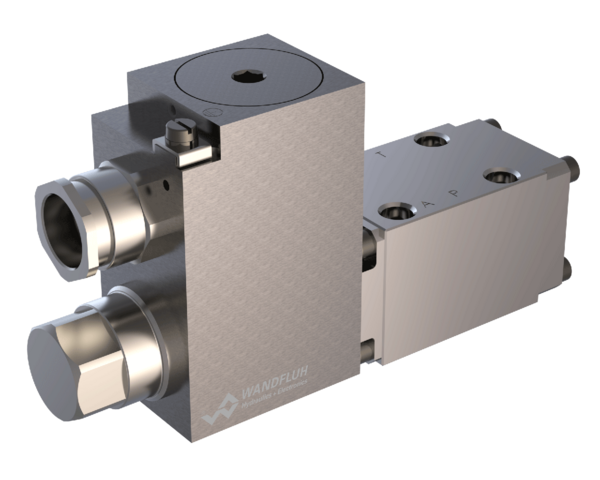

Ex d Explosionsgeschützte Magnetsitzventile rostfrei NG6, Wandfluh AEXd_206_K
Ex d Explosionsgeschützte Magnetsitzventile rostfrei NG6, Wandfluh AEXd_206_K
Art
On/off
Hydraulikfunktion
Sitzventil (leckfrei)
Größe
NG6
Qmax
40 L/min
Pmax
350 bar
Betätigung
Ex d-Magnet
Zertificate
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Ausführung
Edelstahl
Schutzart
IP65 / IP66 / IP67
Ventilkonfigurator
AEXd
-
/
/
-
-
| Type code examples | Internal number | Code on valve plate | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | AEXd22060b-G24/L15/UL-K9M187 | 535.1162 | AEXd22060b/L15/UL-K9M187 | U= 24 VDC |
| Wandfluh | AEXd22060b-G24/L15-D1K9 | 535.1154 | AEXd22060b/L15-D1K9 | U= 24 VDC |
| Wandfluh | AEXd22060b-G24/L15-K9 | 535.1138 | AEXd22060b/L15-K9 | U= 24 VDC |
| Wandfluh | AEXd22060b-G24/L15-K9Z604 | 535.1160 | AEXd22060b/L15-K9Z604 | U= 24 VDC |
| Wandfluh | AEXd22060b-G24/L9-D1K9 | 535.1159 | AEXd22060b/L9-D1K9 | U= 24 VDC |
| Wandfluh | AEXd22060b-G24/L9-K9 | 535.1148 | AEXd22060b/L9-K9 | U= 24 VDC |
| Wandfluh | AEXd22061a-G24/L15-D1K9 | 535.0174 | AEXd22061a/L15-D1K9 | U= 24 VDC |
| Wandfluh | AEXd22061a-R115/L15-D1K9 | 535.0172 | AEXd22061a/L15-D1K9 | U= 115 VAC |
| Wandfluh | AEXd22061a-G24/L15-K9 | 535.0146 | AEXd22061a/L15-K9 | U= 24 VDC |
| Wandfluh | AEXd22061a-G24/L9-K9 | 535.0169 | AEXd22061a/L9-K9 | U= 24 VDC |
| Wandfluh | AEXd32060b-G24/L15-K9 | 535.3237 | AEXd32060b/L15-K9 | U= 24 VDC |
| Wandfluh | AEXd32060b-G24/L15-K9M165 | 535.3268 | AEXd32060b/L15-K9M165 | U= 24 VDC |
| Wandfluh | AEXd32060b-G24/L15-K9M187 | 535.3342 | AEXd32060b/L15-K9M187 | U= 24 VDC |
| Wandfluh | AEXd32060b-G24/L9-K9 | 535.3308 | AEXd32060b/L9-K9 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L15-H92K9 | 535.3343 | AEXd32061a/L15-H92K9 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L15-K10 | 535.3307 | AEXd32061a/L15-K10 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L15-K9 | 535.3225 | AEXd32061a/L15-K9 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L15-K9M187 | 535.3341 | AEXd32061a/L15-K9M187 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L15-K9Z604 | 535.3272 | AEXd32061a/L15-K9Z604 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L9-K10 | 535.3349 | AEXd32061a/L9-K10 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L9-K9 | 535.3286 | AEXd32061a/L9-K9 | U= 24 VDC |
