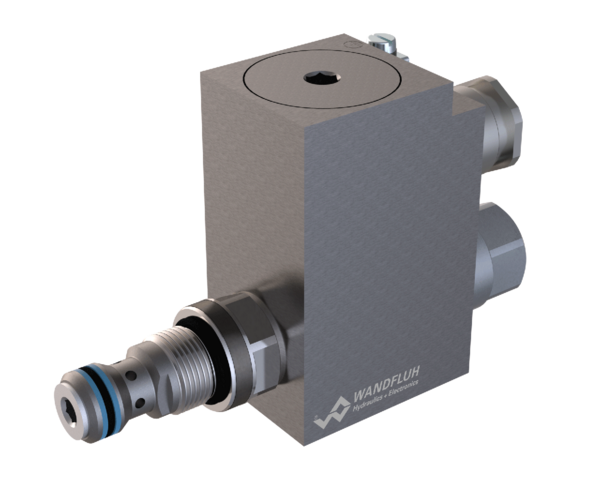

Ex d Explosionsgeschützte Magnetsitzventilpatrone rostfrei M22x1,5, Wandfluh SDYPM22_K
Ex d Explosionsgeschützte Magnetsitzventilpatrone rostfrei M22x1,5, Wandfluh SDYPM22_K
Art
On/off
Hydraulikfunktion
Sitzventil (leckfrei)
Größe
M22x1,5
Qmax
40 L/min
Pmax
350 bar
Betätigung
Ex d-Magnet
Zertificate
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Ausführung
Edelstahl
Schutzart
IP65 / IP66 / IP67
Dichtsatz
251.3040 (NBR) / 251.3023 (FKM)
Ventilkonfigurator
SDYPM22
-
-
/
/
-
-
| Type code examples | Internal number | Code on cartridge | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | SDYPM22-BA-G24/L15-K9 | 500.3319 | SDYPM22-BA/L15-K9 | U= 24 VDC |
| Wandfluh | SDYPM22-BA-G24/L15/UL-K9M187 | 500.3482 | SDYPM22-BA/L15/UL-K9M187 | U= 24 VDC |
| Wandfluh | SDYPM22-FG-G24/L21-K9 | 500.3467 | SDYPM22-FG/L21-K9 | U= 24 VDC |
| Wandfluh | SDYPM22-FG-G24/L15-K10 | 500.3297 | SDYPM22-FG/L15-K10 | U= 24 VDC |
| Wandfluh | SDYPM22-FG-G24/L15/UL-K9M187 | 500.3483 | SDYPM22-FG/L15/UL-K9M187 | U= 24 VDC |
