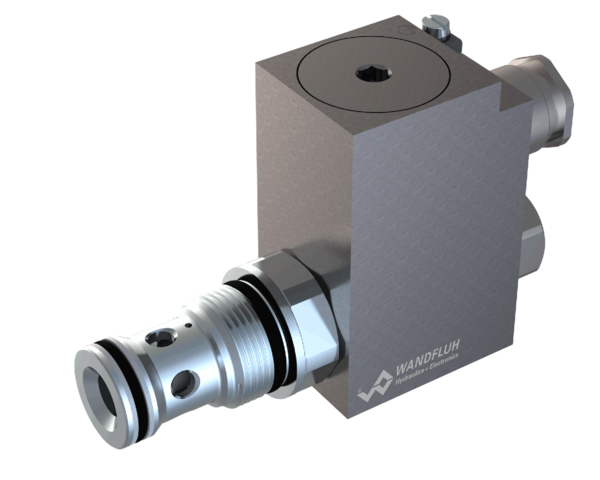

Ex d Explosionsgeschützte Magnetsitzventilpatrone M33x2, Wandfluh SVYPM33

Ex d Explosionsgeschützte Magnetsitzventilpatrone M33x2, Wandfluh SVYPM33

Ex d Explosionsgeschützte Magnetsitzventilpatrone M33x2, Wandfluh SVYPM33

Art
On/off
Hydraulikfunktion
Sitzventil (leckfrei)
Größe
M33x2
Qmax
150 L/min
Pmax
350 bar
Betätigung
Ex d-Magnet
Zertificate
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Ausführung
Standard
Schutzart
IP65 / IP66 / IP67
Andere Optionen
Nennleistung, -40°C, FKM
Dichtsatz
251.3009 (NBR) / 251.3026 (FKM)

Ventilkonfigurator

SVYPM33
-
-
/
/
-
-
Type code examplesInternal numberCode on cartridgeCoil voltage
WandfluhSVYPM33-AB-G24/L15 500.4117SVYPM33-AB/L15 U= 24 VDC
WandfluhSVYPM33-AB-R115/L15 500.4131SVYPM33-AB/L15 U= 115 VAC
WandfluhSVYPM33-AB-X5/L15 500.4155SVYPM33-AB/L15 Without coil
WandfluhSVYPM33-AB-G24/L15-D1 500.4154SVYPM33-AB/L15-D1 U= 24 VDC
WandfluhSVYPM33-AB-G24/L15-HG 500.4177SVYPM33-AB/L15-HG U= 24 VDC
WandfluhSVYPM33-AB-G24/L15-HGK 500.4198SVYPM33-AB/L15-HGK U= 24 VDC
WandfluhSVYPM33-AB-G24/L15-Z604 500.4151SVYPM33-AB/L15-Z604 U= 24 VDC
WandfluhSVYPM33-AB-X5/L9 500.4146SVYPM33-AB/L9 Without coil
WandfluhSVYPM33-BA-G24/L15 500.4118SVYPM33-BA/L15 U= 24 VDC
WandfluhSVYPM33-BA-X5/L15 500.4121SVYPM33-BA/L15 Without coil
WandfluhSVYPM33-BA-G24/L15-D1 500.4203SVYPM33-BA/L15-D1 U= 24 VDC
WandfluhSVYPM33-BA-X5/L15-D1 500.4159SVYPM33-BA/L15-D1 Without coil
WandfluhSVYPM33-BA-G12/L15-HZ 500.4219SVYPM33-BA/L15-HZ U= 12 VDC
WandfluhSVYPM33-BA-G24/L15-HZ 500.4176SVYPM33-BA/L15-HZ U= 24 VDC
WandfluhSVYPM33-BA-G24/L15-HZK 500.4197SVYPM33-BA/L15-HZK U= 24 VDC
WandfluhSVYPM33-BA-X5/L15-HZK 500.4199SVYPM33-BA/L15-HZK Without coil
WandfluhSVYPM33-BA-G24/L15-Z604 500.4173SVYPM33-BA/L15-Z604 U= 24 VDC
WandfluhSVYPM33-BA-G24/L17/UL 500.4178SVYPM33-BA/L17/UL U= 24 VDC
WandfluhSVYPM33-BA-G24/L9 500.4200SVYPM33-BA/L9 U= 24 VDC
WandfluhSVYPM33-BA-X5/L9 500.4180SVYPM33-BA/L9 Without coil
WandfluhSVYPM33-BC-G24/L15 500.4120SVYPM33-BC/L15 U= 24 VDC
WandfluhSVYPM33-BC-X5/L15 500.4135SVYPM33-BC/L15 Without coil
WandfluhSVYPM33-BC-G24/L15-D1 500.4204SVYPM33-BC/L15-D1 U= 24 VDC
WandfluhSVYPM33-BC-G24/L15-M256 500.4192SVYPM33-BC/L15-M256 U= 24 VDC
WandfluhSVYPM33-BC-G24/L9 500.4217SVYPM33-BC/L9 U= 24 VDC
WandfluhSVYPM33-CB-G24/L15 500.4119SVYPM33-CB/L15 U= 24 VDC
WandfluhSVYPM33-CB-X5/L15 500.4152SVYPM33-CB/L15 Without coil
WandfluhSVYPM33-CB-G24/L15-D1 500.4171SVYPM33-CB/L15-D1 U= 24 VDC
WandfluhSVYPM33-CB-X5/L15-D1 500.4208SVYPM33-CB/L15-D1 Without coil
WandfluhSVYPM33-CB-G24/L15-Z604 500.4122SVYPM33-CB/L15-Z604 U= 24 VDC
WandfluhSVYPM33-CB-G24/L9 500.4141SVYPM33-CB/L9 U= 24 VDC
WandfluhSVYPM33-CB-G24/L9-D1 500.4195SVYPM33-CB/L9-D1 U= 24 VDC
