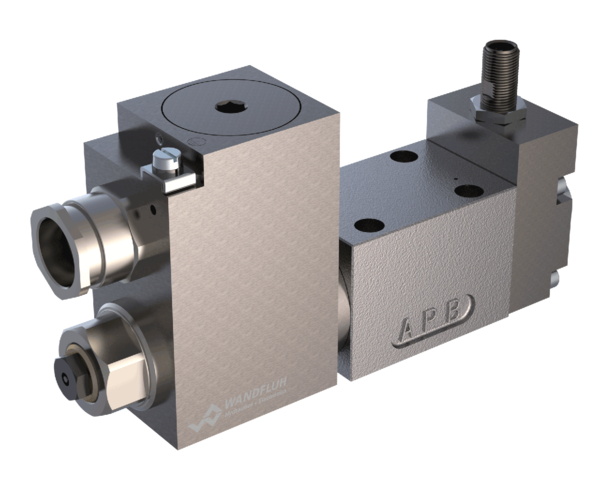

Electroválvulas direccionales antideflagrantes Ex d con sensor de posición inductivo NG6, Wandfluh WDYFA06_Z104
Electroválvulas direccionales antideflagrantes Ex d con sensor de posición inductivo NG6, Wandfluh WDYFA06_Z104
Modo
On/off
Función hidráulica
Válvula direccional
Tamaño
NG6
Qmax
80 L/min
Pmax
350 bar
Accionamiento
Solenoide Ex d
Certificados
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Ejecución
Sensor de posición inductivo
Grado de protección
IP65 / IP66 / IP67
| Type code examples | Internal number | Code on valve plate | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | WDYFA06-AB1-G24/L15-Z104 | 319.0191 | WDYFA06-AB1/L15-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-AB1-R115/L15-Z104 | 319.0170 | WDYFA06-AB1/L15-Z104 | U= 115 VAC |
| Wandfluh | WDYFA06-AB1-G24/L9-Z104 | 319.0287 | WDYFA06-AB1/L9-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-AB2-G24/L15-Z104 | 319.0252 | WDYFA06-AB2/L15-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-AB2-G24/L9-Z104 | 319.0273 | WDYFA06-AB2/L9-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-AB3-G24/L15-Z104 | 321.0072 | WDYFA06-AB3/L15-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-AB3-G24/L9-Z104 | 321.0071 | WDYFA06-AB3/L9-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-AC1-G24/L15-Z104 | 319.1062 | WDYFA06-AC1/L15-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-AC2-G24/L15-Z57/104 | 319.0265 | WDYFA06-AC2/L15-Z57/104 | U= 24 VDC |
| Wandfluh | WDYFA06-ACB-G24/L15-Z104 | 321.1108 | WDYFA06-ACB/L15-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-ADB-G24/L15-Z104 | 321.2141 | WDYFA06-ADB/L15-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-AF1-G24/L15-Z104 | 319.4055 | WDYFA06-AF1/L15-Z104 | U= 24 VDC |
| Wandfluh | WDYFA06-CB2-G24/L15-Z104 | 319.1061 | WDYFA06-CB2/L15-Z104 | U= 24 VDC |
