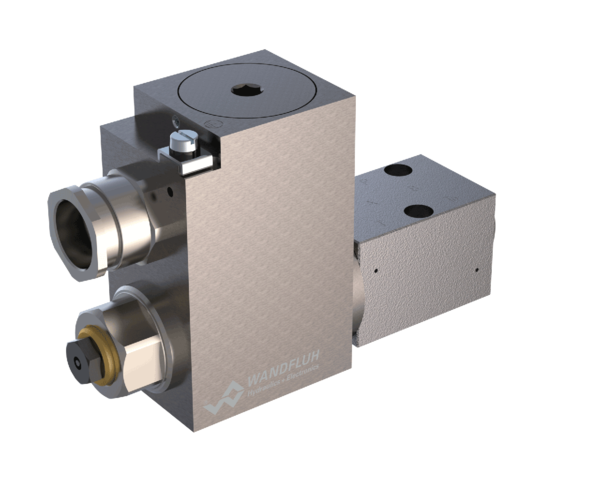

Électrovalves directionnelles antidéflagrantes Ex d NG4-Mini, Wandfluh WDYFA04

Électrovalves directionnelles antidéflagrantes Ex d NG4-Mini, Wandfluh WDYFA04

Électrovalves directionnelles antidéflagrantes Ex d NG4-Mini, Wandfluh WDYFA04

Mode
On/off
Fonction hydraulique
Valve directionnelle
Calibre
NG4-Mini (Wandfluh)
Qmax
30 L/min
Pmax
350 bar
Actionnement
Solénoïde Ex d
Certificats
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Exécution
Standard
Degré de protection
IP65 / IP66 / IP67
Autres options
Fuites faibles, puissance nominale, -40°C, FKM
Jeu de joints
-

Configurateur de valves

WDYFA04
-
-
-
/
/
-
Type code examplesInternal numberCode on valve plateCoil voltage
WandfluhWDYFA04-AB1-G24/L15 314.0120WDYFA04-AB1/L15 U= 24 VDC
WandfluhWDYFA04-AB1-R230/L15 314.0121WDYFA04-AB1/L15 U= 230 VAC
WandfluhWDYFA04-AB1-X5/L15 314.0127WDYFA04-AB1/L15 Without coil
WandfluhWDYFA04-AB1-G24/L15/MA 314.0144WDYFA04-AB1/L15/MA U= 24 VDC
WandfluhWDYFA04-AB1-X5/L15-D1 314.0137WDYFA04-AB1/L15-D1 Without coil
WandfluhWDYFA04-AB1-X5/L15-Z319 314.0125WDYFA04-AB1/L15-Z319 Without coil
WandfluhWDYFA04-AB1-G24/L9314.0124WDYFA04-AB1/L9U= 24 VDC
WandfluhWDYFA04-AB1-R230/L9314.0131WDYFA04-AB1/L9U= 230 VAC
WandfluhWDYFA04-AB1-X5/L9-D1314.0118WDYFA04-AB1/L9-D1Without coil
WandfluhWDYFA04-AB1-1/x-G24/L15 314.0147WDYFA04-AB1-1/x/L15 U= 24 VDC
WandfluhWDYFA04-AB1-y-G24/L15-Z604 314.0126WDYFA04-AB1-y/L15-Z604 U= 24 VDC
WandfluhWDYFA04-AB2-G24/L15 314.0135WDYFA04-AB2/L15 U= 24 VDC
WandfluhWDYFA04-AB2-R230/L15 314.0143WDYFA04-AB2/L15 U= 230 VAC
WandfluhWDYFA04-AB2-G24/L15-D1 314.0149WDYFA04-AB2/L15-D1 U= 24 VDC
WandfluhWDYFA04-AB2-X5/L15-Z319 314.0138WDYFA04-AB2/L15-Z319 Without coil
WandfluhWDYFA04-AB2-G24/L9314.0129WDYFA04-AB2/L9U= 24 VDC
WandfluhWDYFA04-AB2-R115/L9314.0122WDYFA04-AB2/L9U= 115 VAC
WandfluhWDYFA04-AB2-y-G24/L15-Z604 314.0145WDYFA04-AB2-y/L15-Z604 U= 24 VDC
WandfluhWDYFA04-AB3-G24/L15 316.0018WDYFA04-AB3/L15 U= 24 VDC
WandfluhWDYFA04-ACB-G24/L15 316.1037WDYFA04-ACB/L15 U= 24 VDC
WandfluhWDYFA04-ACB-X5/L15 316.1039WDYFA04-ACB/L15 Without coil
WandfluhWDYFA04-ACB-1/x-X5/L15 316.1038WDYFA04-ACB-1/x/L15 Without coil
WandfluhWDYFA04-AD1-G24/L15 314.2017WDYFA04-AD1/L15 U= 24 VDC
WandfluhWDYFA04-AD1-X5/L15-D1314.2027WDYFA04-AD1/L15-D1Without coil
WandfluhWDYFA04-AD1-G24/L9314.2020WDYFA04-AD1/L9U= 24 VDC
WandfluhWDYFA04-ADB-G24/L15 316.2078WDYFA04-ADB/L15 U= 24 VDC
WandfluhWDYFA04-ADB-R115/L15 316.2099WDYFA04-ADB/L15 U= 115 VAC
WandfluhWDYFA04-ADB-X5/L15 316.2089WDYFA04-ADB/L15 Without coil
WandfluhWDYFA04-ADB-G24/L15-D1 316.2100WDYFA04-ADB/L15-D1 U= 24 VDC
WandfluhWDYFA04-ADB-X5/L15-D1 316.2086WDYFA04-ADB/L15-D1 Without coil
WandfluhWDYFA04-ADB-G24/L17/UL 316.2093WDYFA04-ADB/L17/UL U= 24 VDC
WandfluhWDYFA04-ADB-G12/L9316.2079WDYFA04-ADB/L9U= 12 VDC
WandfluhWDYFA04-ADB-G24/L9316.2074WDYFA04-ADB/L9U= 24 VDC
WandfluhWDYFA04-ADB-R115/L9316.2076WDYFA04-ADB/L9U= 115 VAC
WandfluhWDYFA04-ADB-R230/L9316.2077WDYFA04-ADB/L9U= 230 VAC
WandfluhWDYFA04-ADB-X5/L9316.2072WDYFA04-ADB/L9Without coil
WandfluhWDYFA04-ADB-y-G24/L15-Z604 316.2091WDYFA04-ADB-y/L15-Z604 U= 24 VDC
WandfluhWDYFA04-AF1-X5/L15 314.4000WDYFA04-AF1/L15 Without coil
WandfluhWDYFA04-AFB-G24/L15 316.4008WDYFA04-AFB/L15 U= 24 VDC
WandfluhWDYFA04-AFB-y-G24/L15-Z604 316.4009WDYFA04-AFB-y/L15-Z604 U= 24 VDC
WandfluhWDYFA04-CB2-R115/L17/UL314.1011WDYFA04-CB2/L17/ULU= 115 VAC
WandfluhWDYFA04-CB2-R230/L9314.1010WDYFA04-CB2/L9U= 230 VAC
WandfluhWDYFA04-DB2-G24/L15314.2026WDYFA04-DB2/L15U= 24 VDC
WandfluhWDYFA04-DB2-X5/L15314.2024WDYFA04-DB2/L15Without coil
WandfluhWDYFA04-DB2-G24/L9314.2019WDYFA04-DB2/L9U= 24 VDC
