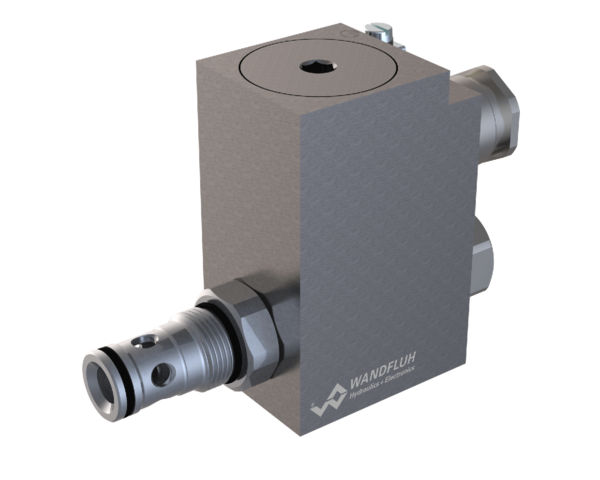

Elettrovalvole a otturatore antideflagranti Ex d cartucce M22x1,5, Wandfluh SVYPM22
Elettrovalvole a otturatore antideflagranti Ex d cartucce M22x1,5, Wandfluh SVYPM22
Modo
On/off
Funzione idraulica
Valvola ad otturatore (senza perdite)
Grandezza
M22x1,5
Qmax
80 L/min
Pmax
350 bar
Azionamento
Solenoide Ex d
Certificati
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Esecuzione
Standard
Grado di protezione
IP65 / IP66 / IP67
Configuratore di valvole
SVYPM22
-
-
/
/
-
| Type code examples | Internal number | Code on cartridge | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | SVYPM22-BC-G110/L15 | 500.3235 | SVYPM22-BC/L15 | U= 110 VDC |
| Wandfluh | SVYPM22-BC-G24/L15 | 500.3207 | SVYPM22-BC/L15 | U= 24 VDC |
| Wandfluh | SVYPM22-BC-R115/L15 | 500.3270 | SVYPM22-BC/L15 | U= 115 VAC |
| Wandfluh | SVYPM22-BC-R230/L15 | 500.3258 | SVYPM22-BC/L15 | U= 230 VAC |
| Wandfluh | SVYPM22-BC-X5/L15 | 500.3242 | SVYPM22-BC/L15 | Without coil |
| Wandfluh | SVYPM22-BC-G24/L15/MA | 500.3473 | SVYPM22-BC/L15/MA | U= 24 VDC |
| Wandfluh | SVYPM22-BC-G24/L15-HZ | 500.3379 | SVYPM22-BC/L15-HZ | U= 24 VDC |
| Wandfluh | SVYPM22-BC-G24/L15-HZK | 500.3305 | SVYPM22-BC/L15-HZK | U= 24 VDC |
| Wandfluh | SVYPM22-BC-G24/L17/UL | 500.3264 | SVYPM22-BC/L17/UL | U= 24 VDC |
| Wandfluh | SVYPM22-BC-G24/L9 | 500.3259 | SVYPM22-BC/L9 | U= 24 VDC |
| Wandfluh | SVYPM22-CB-G24/L15 | 500.3206 | SVYPM22-CB/L15 | U= 24 VDC |
| Wandfluh | SVYPM22-CB-R115/L15 | 500.3215 | SVYPM22-CB/L15 | U= 115 VAC |
| Wandfluh | SVYPM22-CB-R230/L15 | 500.3269 | SVYPM22-CB/L15 | U= 230 VAC |
| Wandfluh | SVYPM22-CB-X5/L15 | 500.3202 | SVYPM22-CB/L15 | Without coil |
| Wandfluh | SVYPM22-CB-G12/L15/AU | 500.3229 | SVYPM22-CB/L15/AU | U= 12 VDC |
| Wandfluh | SVYPM22-CB-G24/L15-D1HG | 500.3404 | SVYPM22-CB/L15-D1HG | U= 24 VDC |
| Wandfluh | SVYPM22-CB-G24/L17/UL | 500.3387 | SVYPM22-CB/L17/UL | U= 24 VDC |
| Wandfluh | SVYPM22-CB-G24/L17/UL-D1HG | 500.3294 | SVYPM22-CB/L17/UL-D1HG | U= 24 VDC |
| Wandfluh | SVYPM22-CB-G24/L9 | 500.3329 | SVYPM22-CB/L9 | U= 24 VDC |
| Wandfluh | SVYPM22-CB-X5/L9-D1 | 500.3250 | SVYPM22-CB/L9-D1 | Without coil |
