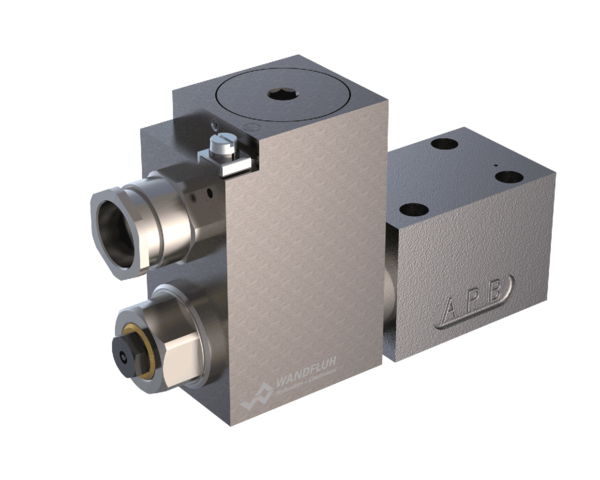

Elettrovalvole direzionali antideflagranti Ex d NG6, Wandfluh WDYFA06

Elettrovalvole direzionali antideflagranti Ex d NG6, Wandfluh WDYFA06

Elettrovalvole direzionali antideflagranti Ex d NG6, Wandfluh WDYFA06

Modo
On/off
Funzione idraulica
Valvola direzionale
Grandezza
NG6
Qmax
80 L/min
Pmax
350 bar
Azionamento
Solenoide Ex d
Certificati
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Esecuzione
Standard
Grado di protezione
IP65 / IP66 / IP67
Altre opzioni
Potenza nominale, -40°C, FKM
Kit O-ring
251.2218 (NBR)

Configuratore di valvole

WDYFA06
-
-
/
/
-
Type code examplesInternal numberCode on valve plateCoil voltage
WandfluhWDYFA06-AB1-G110/L15 319.0209WDYFA06-AB1/L15 U= 110 VDC
WandfluhWDYFA06-AB1-G12/L15 319.0215WDYFA06-AB1/L15 U= 12 VDC
WandfluhWDYFA06-AB1-G24/L15 319.0155WDYFA06-AB1/L15 U= 24 VDC
WandfluhWDYFA06-AB1-G48/L15 319.0280WDYFA06-AB1/L15 U= 48 VDC
WandfluhWDYFA06-AB1-R115/L15 319.0171WDYFA06-AB1/L15 U= 115 VAC
WandfluhWDYFA06-AB1-R230/L15 319.0172WDYFA06-AB1/L15 U= 230 VAC
WandfluhWDYFA06-AB1-X5/L15 319.0194WDYFA06-AB1/L15 Without coil
WandfluhWDYFA06-AB1-G12/L15/AU-M256 319.0260WDYFA06-AB1/L15/AU-M256 U= 12 VDC
WandfluhWDYFA06-AB1-G24/L15/MA 319.0248WDYFA06-AB1/L15/MA U= 24 VDC
WandfluhWDYFA06-AB1-G24/L15-D1 319.0167WDYFA06-AB1/L15-D1 U= 24 VDC
WandfluhWDYFA06-AB1-R115/L15-D1 319.0184WDYFA06-AB1/L15-D1 U= 115 VAC
WandfluhWDYFA06-AB1-X5/L15-D1 319.0240WDYFA06-AB1/L15-D1 Without coil
WandfluhWDYFA06-AB1-G24/L15-D1K8M187 319.0283WDYFA06-AB1/L15-D1K8M187 U= 24 VDC
WandfluhWDYFA06-AB1-G24/L15-H35 319.0169WDYFA06-AB1/L15-H35 U= 24 VDC
WandfluhWDYFA06-AB1-G24/L15-H92 319.0228WDYFA06-AB1/L15-H92 U= 24 VDC
WandfluhWDYFA06-AB1-R115/L15-H92 319.0221WDYFA06-AB1/L15-H92 U= 115 VAC
WandfluhWDYFA06-AB1-G24/L15-HG 319.0264WDYFA06-AB1/L15-HG U= 24 VDC
WandfluhWDYFA06-AB1-G24/L15-HGK 319.0255WDYFA06-AB1/L15-HGK U= 24 VDC
WandfluhWDYFA06-AB1-G24/L15-HNK 319.0245WDYFA06-AB1/L15-HNK U= 24 VDC
WandfluhWDYFA06-AB1-G24/L15-K8M187 319.0281WDYFA06-AB1/L15-K8M187 U= 24 VDC
WandfluhWDYFA06-AB1-G24/L15-M187 319.0186WDYFA06-AB1/L15-M187 U= 24 VDC
WandfluhWDYFA06-AB1-R230/L15-M187 319.0230WDYFA06-AB1/L15-M187 U= 230 VAC
WandfluhWDYFA06-AB1-G24/L15-M256 319.0213WDYFA06-AB1/L15-M256 U= 24 VDC
WandfluhWDYFA06-AB1-G12/L15-Z319 319.0235WDYFA06-AB1/L15-Z319 U= 12 VDC
WandfluhWDYFA06-AB1-X5/L15-Z319 319.0193WDYFA06-AB1/L15-Z319 Without coil
WandfluhWDYFA06-AB1-G24/L17/UL 319.0181WDYFA06-AB1/L17/UL U= 24 VDC
WandfluhWDYFA06-AB1-G24/L17/UL-HG 319.0278WDYFA06-AB1/L17/UL-HG U= 24 VDC
WandfluhWDYFA06-AB1-R115/L17/UL-HNK 319.0266WDYFA06-AB1/L17/UL-HNK U= 115 VAC
WandfluhWDYFA06-AB1-G24/L9 319.0161WDYFA06-AB1/L9 U= 24 VDC
WandfluhWDYFA06-AB1-R110/L9 319.0173WDYFA06-AB1/L9 U= 110 VAC
WandfluhWDYFA06-AB1-R230/L9 319.0222WDYFA06-AB1/L9 U= 230 VAC
WandfluhWDYFA06-AB1-X5/L9-D1 319.0231WDYFA06-AB1/L9-D1 Without coil
WandfluhWDYFA06-AB1-G24/L9-D1HN 319.0282WDYFA06-AB1/L9-D1HN U= 24 VDC
WandfluhWDYFA06-AB1-G24/L9-H37 319.0182WDYFA06-AB1/L9-H37 U= 24 VDC
WandfluhWDYFA06-AB1-G24/L9-HG 319.0229WDYFA06-AB1/L9-HG U= 24 VDC
WandfluhWDYFA06-AB1-x-X5/L15 319.0267WDYFA06-AB1-x/L15 Without coil
WandfluhWDYFA06-AB1-xx-G24/L15 319.0175WDYFA06-AB1-xx/L15 U= 24 VDC
WandfluhWDYFA06-AB1-y-G24/L15-Z604 319.0164WDYFA06-AB1-y/L15-Z604 U= 24 VDC
WandfluhWDYFA06-AB1-y-G24/L17/UL-Z604 319.0242WDYFA06-AB1-y/L17/UL-Z604 U= 24 VDC
WandfluhWDYFA06-AB2-G12/L15 319.0218WDYFA06-AB2/L15 U= 12 VDC
WandfluhWDYFA06-AB2-G24/L15 319.0166WDYFA06-AB2/L15 U= 24 VDC
WandfluhWDYFA06-AB2-R115/L15 319.0208WDYFA06-AB2/L15 U= 115 VAC
WandfluhWDYFA06-AB2-R230/L15 319.0202WDYFA06-AB2/L15 U= 230 VAC
WandfluhWDYFA06-AB2-X5/L15 319.0241WDYFA06-AB2/L15 Without coil
WandfluhWDYFA06-AB2-G24/L15-H1 319.0179WDYFA06-AB2/L15-H1 U= 24 VDC
WandfluhWDYFA06-AB2-G24/L15-M256 319.0189WDYFA06-AB2/L15-M256 U= 24 VDC
WandfluhWDYFA06-AB2-X5/L15-Z319 319.0251WDYFA06-AB2/L15-Z319 Without coil
WandfluhWDYFA06-AB2-G24/L17/UL 319.0262WDYFA06-AB2/L17/UL U= 24 VDC
WandfluhWDYFA06-AB2-G24/L17/UL-D1 319.0238WDYFA06-AB2/L17/UL-D1 U= 24 VDC
WandfluhWDYFA06-AB2-G24/L9 319.0196WDYFA06-AB2/L9 U= 24 VDC
WandfluhWDYFA06-AB2-R115/L9 319.0250WDYFA06-AB2/L9 U= 115 VAC
WandfluhWDYFA06-AB2-y-G24/L15-Z604 319.0165WDYFA06-AB2-y/L15-Z604 U= 24 VDC
WandfluhWDYFA06-AB3-G12/L15321.0076WDYFA06-AB3/L15U= 12 VDC
WandfluhWDYFA06-AB3-G24/L15321.0051WDYFA06-AB3/L15U= 24 VDC
WandfluhWDYFA06-AB3-R115/L15321.0069WDYFA06-AB3/L15U= 115 VAC
WandfluhWDYFA06-AB3-X5/L15321.0070WDYFA06-AB3/L15Without coil
WandfluhWDYFA06-AB3-G24/L15/MA321.0078WDYFA06-AB3/L15/MAU= 24 VDC
WandfluhWDYFA06-AB3-G24/L15-M256321.0057WDYFA06-AB3/L15-M256U= 24 VDC
WandfluhWDYFA06-AB3-G24/L17/UL321.0080WDYFA06-AB3/L17/ULU= 24 VDC
WandfluhWDYFA06-AB3-G24/L9321.0060WDYFA06-AB3/L9U= 24 VDC
WandfluhWDYFA06-AB3-R230/L9321.0075WDYFA06-AB3/L9U= 230 VAC
WandfluhWDYFA06-AB3-X5/L9321.0067WDYFA06-AB3/L9Without coil
WandfluhWDYFA06-AB3-xx-G24/L15321.0053WDYFA06-AB3-xx/L15U= 24 VDC
WandfluhWDYFA06-AB3-y-G24/L15-Z604321.0077WDYFA06-AB3-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-AC1-G24/L15319.1045WDYFA06-AC1/L15U= 24 VDC
WandfluhWDYFA06-AC1-R115/L15319.1051WDYFA06-AC1/L15U= 115 VAC
WandfluhWDYFA06-AC1-R230/L15319.1058WDYFA06-AC1/L15U= 230 VAC
WandfluhWDYFA06-AC1-X5/L15319.1065WDYFA06-AC1/L15Without coil
WandfluhWDYFA06-AC1-G24/L15-D1319.1060WDYFA06-AC1/L15-D1U= 24 VDC
WandfluhWDYFA06-AC1-R115/L15-M187319.1048WDYFA06-AC1/L15-M187U= 115 VAC
WandfluhWDYFA06-AC1-G24/L17/UL319.1059WDYFA06-AC1/L17/ULU= 24 VDC
WandfluhWDYFA06-AC1-R230/L9319.1055WDYFA06-AC1/L9U= 230 VAC
WandfluhWDYFA06-AC2-xx-G24/L15-Z57319.0185WDYFA06-AC2-xx/L15-Z57U= 24 VDC
WandfluhWDYFA06-ACB-G110/L15321.1095WDYFA06-ACB/L15U= 110 VDC
WandfluhWDYFA06-ACB-G24/L15321.1064WDYFA06-ACB/L15U= 24 VDC
WandfluhWDYFA06-ACB-R115/L15321.1067WDYFA06-ACB/L15U= 115 VAC
WandfluhWDYFA06-ACB-R230/L15321.1075WDYFA06-ACB/L15U= 230 VAC
WandfluhWDYFA06-ACB-X5/L15321.1089WDYFA06-ACB/L15Without coil
WandfluhWDYFA06-ACB-G24/L15-D1321.1068WDYFA06-ACB/L15-D1U= 24 VDC
WandfluhWDYFA06-ACB-R230/L15-D1321.1066WDYFA06-ACB/L15-D1U= 230 VAC
WandfluhWDYFA06-ACB-X5/L15-D1321.1107WDYFA06-ACB/L15-D1Without coil
WandfluhWDYFA06-ACB-G24/L15-H1321.1092WDYFA06-ACB/L15-H1U= 24 VDC
WandfluhWDYFA06-ACB-G24/L15-H37321.1082WDYFA06-ACB/L15-H37U= 24 VDC
WandfluhWDYFA06-ACB-G24/L15-HGK321.1103WDYFA06-ACB/L15-HGKU= 24 VDC
WandfluhWDYFA06-ACB-G24/L15-HNK321.1102WDYFA06-ACB/L15-HNKU= 24 VDC
WandfluhWDYFA06-ACB-G24/L15-M187321.1112WDYFA06-ACB/L15-M187U= 24 VDC
WandfluhWDYFA06-ACB-X5/L15-Z319321.1088WDYFA06-ACB/L15-Z319Without coil
WandfluhWDYFA06-ACB-G24/L17/UL321.1071WDYFA06-ACB/L17/ULU= 24 VDC
WandfluhWDYFA06-ACB-G24/L17/UL-D1321.1098WDYFA06-ACB/L17/UL-D1U= 24 VDC
WandfluhWDYFA06-ACB-G24/L9321.1077WDYFA06-ACB/L9U= 24 VDC
WandfluhWDYFA06-ACB-R115/L9321.1094WDYFA06-ACB/L9U= 115 VAC
WandfluhWDYFA06-ACB-R230/L9321.1083WDYFA06-ACB/L9U= 230 VAC
WandfluhWDYFA06-ACB-X5/L9321.1100WDYFA06-ACB/L9Without coil
WandfluhWDYFA06-ACB-R115/L9/AU321.1113WDYFA06-ACB/L9/AUU= 115 VAC
WandfluhWDYFA06-ACB-X5/L9-D1321.1065WDYFA06-ACB/L9-D1Without coil
WandfluhWDYFA06-ACB-G24/L9-D1HN321.1114WDYFA06-ACB/L9-D1HNU= 24 VDC
WandfluhWDYFA06-ACB-G24/L9-H37321.1074WDYFA06-ACB/L9-H37U= 24 VDC
WandfluhWDYFA06-ACB-y-G24/L15-M187Z604321.1110WDYFA06-ACB-y/L15-M187Z604U= 24 VDC
WandfluhWDYFA06-ACB-y-G24/L15-Z604321.1069WDYFA06-ACB-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-ACB-y-G48/L15-Z604321.1084WDYFA06-ACB-y/L15-Z604U= 48 VDC
WandfluhWDYFA06-ACB-y-G24/L17/UL-Z604321.1078WDYFA06-ACB-y/L17/UL-Z604U= 24 VDC
WandfluhWDYFA06-AD1-G24/L15319.2030WDYFA06-AD1/L15U= 24 VDC
WandfluhWDYFA06-AD1-X5/L15319.2036WDYFA06-AD1/L15Without coil
WandfluhWDYFA06-AD1-G24/L15-M165319.2041WDYFA06-AD1/L15-M165U= 24 VDC
WandfluhWDYFA06-AD1-X5/L15-Z319319.2033WDYFA06-AD1/L15-Z319Without coil
WandfluhWDYFA06-AD1-G24/L17/UL319.2040WDYFA06-AD1/L17/ULU= 24 VDC
WandfluhWDYFA06-AD1-y-G24/L15-Z604319.2029WDYFA06-AD1-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-ADB-G110/L15321.2127WDYFA06-ADB/L15U= 110 VDC
WandfluhWDYFA06-ADB-G12/L15321.2119WDYFA06-ADB/L15U= 12 VDC
WandfluhWDYFA06-ADB-G24/L15321.2088WDYFA06-ADB/L15U= 24 VDC
WandfluhWDYFA06-ADB-G48/L15321.2132WDYFA06-ADB/L15U= 48 VDC
WandfluhWDYFA06-ADB-R115/L15321.2095WDYFA06-ADB/L15U= 115 VAC
WandfluhWDYFA06-ADB-R230/L15321.2105WDYFA06-ADB/L15U= 230 VAC
WandfluhWDYFA06-ADB-X5/L15321.2097WDYFA06-ADB/L15Without coil
WandfluhWDYFA06-ADB-G24/L15/MA321.2135WDYFA06-ADB/L15/MAU= 24 VDC
WandfluhWDYFA06-ADB-G24/L15/MA-D1321.2148WDYFA06-ADB/L15/MA-D1U= 24 VDC
WandfluhWDYFA06-ADB-G24/L15-D1321.2093WDYFA06-ADB/L15-D1U= 24 VDC
WandfluhWDYFA06-ADB-G48/L15-D1321.2153WDYFA06-ADB/L15-D1U= 48 VDC
WandfluhWDYFA06-ADB-R115/L15-D1321.2107WDYFA06-ADB/L15-D1U= 115 VAC
WandfluhWDYFA06-ADB-X5/L15-D1321.2115WDYFA06-ADB/L15-D1Without coil
WandfluhWDYFA06-ADB-G24/L15-H19321.2098WDYFA06-ADB/L15-H19U= 24 VDC
WandfluhWDYFA06-ADB-G12/L15-H37321.2087WDYFA06-ADB/L15-H37U= 12 VDC
WandfluhWDYFA06-ADB-G24/L15-H92321.2165WDYFA06-ADB/L15-H92U= 24 VDC
WandfluhWDYFA06-ADB-G24/L15-HGK321.2152WDYFA06-ADB/L15-HGKU= 24 VDC
WandfluhWDYFA06-ADB-G24/L15-HNK321.2150WDYFA06-ADB/L15-HNKU= 24 VDC
WandfluhWDYFA06-ADB-G24/L15-M165321.2123WDYFA06-ADB/L15-M165U= 24 VDC
WandfluhWDYFA06-ADB-G24/L15-M187321.2128WDYFA06-ADB/L15-M187U= 24 VDC
WandfluhWDYFA06-ADB-R115/L15-M187321.2164WDYFA06-ADB/L15-M187U= 115 VAC
WandfluhWDYFA06-ADB-G24/L15-M256321.2111WDYFA06-ADB/L15-M256U= 24 VDC
WandfluhWDYFA06-ADB-G24/L17/UL321.2104WDYFA06-ADB/L17/ULU= 24 VDC
WandfluhWDYFA06-ADB-G24/L17/UL-D1321.2145WDYFA06-ADB/L17/UL-D1U= 24 VDC
WandfluhWDYFA06-ADB-G24/L9321.2092WDYFA06-ADB/L9U= 24 VDC
WandfluhWDYFA06-ADB-R115/L9321.2140WDYFA06-ADB/L9U= 115 VAC
WandfluhWDYFA06-ADB-R230/L9321.2142WDYFA06-ADB/L9U= 230 VAC
WandfluhWDYFA06-ADB-X5/L9321.2137WDYFA06-ADB/L9Without coil
WandfluhWDYFA06-ADB-G24/L9-D1321.2158WDYFA06-ADB/L9-D1U= 24 VDC
WandfluhWDYFA06-ADB-X5/L9-D1321.2155WDYFA06-ADB/L9-D1Without coil
WandfluhWDYFA06-ADB-G24/L9-H37321.2096WDYFA06-ADB/L9-H37U= 24 VDC
WandfluhWDYFA06-ADB-R24/L15321.2129WDYFA06-ADB/L15U= 24 VAC
WandfluhWDYFA06-ADB-x-G110/L15321.2130WDYFA06-ADB-x/L15U= 110 VDC
WandfluhWDYFA06-ADB-x-G24/L15-H1321.2112WDYFA06-ADB-x/L15-H1U= 24 VDC
WandfluhWDYFA06-ADB-xx-G24/L15321.2100WDYFA06-ADB-xx/L15U= 24 VDC
WandfluhWDYFA06-ADB-y-G24/L15-Z604321.2090WDYFA06-ADB-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-ADB-y-G24/L17/UL-Z604321.2113WDYFA06-ADB-y/L17/UL-Z604U= 24 VDC
WandfluhWDYFA06-AF1-G12/L15319.4048WDYFA06-AF1/L15U= 12 VDC
WandfluhWDYFA06-AF1-G24/L15319.4041WDYFA06-AF1/L15U= 24 VDC
WandfluhWDYFA06-AF1-R115/L15319.4053WDYFA06-AF1/L15U= 115 VAC
WandfluhWDYFA06-AF1-R230/L15319.4050WDYFA06-AF1/L15U= 230 VAC
WandfluhWDYFA06-AF1-X5/L15319.4059WDYFA06-AF1/L15Without coil
WandfluhWDYFA06-AF1-X5/L15-D1319.4052WDYFA06-AF1/L15-D1Without coil
WandfluhWDYFA06-AF1-G24/L15-D1H19319.4046WDYFA06-AF1/L15-D1H19U= 24 VDC
WandfluhWDYFA06-AF1-G24/L15-H19319.4042WDYFA06-AF1/L15-H19U= 24 VDC
WandfluhWDYFA06-AF1-G12/L15-Z319319.4056WDYFA06-AF1/L15-Z319U= 12 VDC
WandfluhWDYFA06-AF1-G24/L17/UL319.4054WDYFA06-AF1/L17/ULU= 24 VDC
WandfluhWDYFA06-AF1-G24/L9319.4058WDYFA06-AF1/L9U= 24 VDC
WandfluhWDYFA06-AF1-X5/L9-D1319.4049WDYFA06-AF1/L9-D1Without coil
WandfluhWDYFA06-AF1-y-G24/L15-Z604319.4043WDYFA06-AF1-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-AFB-G24/L15321.4032WDYFA06-AFB/L15U= 24 VDC
WandfluhWDYFA06-AFB-R115/L15321.4040WDYFA06-AFB/L15U= 115 VAC
WandfluhWDYFA06-AFB-R230/L15321.4046WDYFA06-AFB/L15U= 230 VAC
WandfluhWDYFA06-AFB-X5/L15321.4041WDYFA06-AFB/L15Without coil
WandfluhWDYFA06-AFB-G24/L15-D1321.4034WDYFA06-AFB/L15-D1U= 24 VDC
WandfluhWDYFA06-AFB-X5/L15-Z319321.4042WDYFA06-AFB/L15-Z319Without coil
WandfluhWDYFA06-AFB-G24/L17/UL321.4037WDYFA06-AFB/L17/ULU= 24 VDC
WandfluhWDYFA06-AFB-G24/L17/UL-D1321.4048WDYFA06-AFB/L17/UL-D1U= 24 VDC
WandfluhWDYFA06-AFB-G24/L9321.4033WDYFA06-AFB/L9U= 24 VDC
WandfluhWDYFA06-AFB-R230/L9321.4035WDYFA06-AFB/L9U= 230 VAC
WandfluhWDYFA06-AFB-X5/L9321.4045WDYFA06-AFB/L9Without coil
WandfluhWDYFA06-AFB-y-G24/L15-Z604321.4051WDYFA06-AFB-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-AFB-y-G24/L17/UL-Z604321.4039WDYFA06-AFB-y/L17/UL-Z604U= 24 VDC
WandfluhWDYFA06-AGB-G24/L15321.5013WDYFA06-AGB/L15U= 24 VDC
WandfluhWDYFA06-AGB-R115/L15321.5015WDYFA06-AGB/L15U= 115 VAC
WandfluhWDYFA06-AGB-G24/L15/MA321.5020WDYFA06-AGB/L15/MAU= 24 VDC
WandfluhWDYFA06-AGB-G24/L15-D1321.5023WDYFA06-AGB/L15-D1U= 24 VDC
WandfluhWDYFA06-AGB-G24/L15-D1M187321.5024WDYFA06-AGB/L15-D1M187U= 24 VDC
WandfluhWDYFA06-AGB-G24/L15-M187321.5017WDYFA06-AGB/L15-M187U= 24 VDC
WandfluhWDYFA06-AGB-G24/L17/UL321.5018WDYFA06-AGB/L17/ULU= 24 VDC
WandfluhWDYFA06-AGB-G24/L17/UL-D1321.5021WDYFA06-AGB/L17/UL-D1U= 24 VDC
WandfluhWDYFA06-AGB-G24/L9321.5014WDYFA06-AGB/L9U= 24 VDC
WandfluhWDYFA06-AGB-G24/L9-D1321.5019WDYFA06-AGB/L9-D1U= 24 VDC
WandfluhWDYFA06-AGB-y-G24/L15-Z604321.5022WDYFA06-AGB-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-AJB-G24/L15321.8003WDYFA06-AJB/L15U= 24 VDC
WandfluhWDYFA06-BE1-G24/L15319.3020WDYFA06-BE1/L15U= 24 VDC
WandfluhWDYFA06-BE1-G24/L15-HGK319.3023WDYFA06-BE1/L15-HGKU= 24 VDC
WandfluhWDYFA06-BE1-X5/L15-Z319319.3018WDYFA06-BE1/L15-Z319Without coil
WandfluhWDYFA06-BE1-G24/L9319.3021WDYFA06-BE1/L9U= 24 VDC
WandfluhWDYFA06-BE1-R115/L9/AU319.3027WDYFA06-BE1/L9/AUU= 115 VAC
WandfluhWDYFA06-BEA-G24/L15321.3029WDYFA06-BEA/L15U= 24 VDC
WandfluhWDYFA06-BEA-R115/L15321.3035WDYFA06-BEA/L15U= 115 VAC
WandfluhWDYFA06-BEA-R230/L15321.3031WDYFA06-BEA/L15U= 230 VAC
WandfluhWDYFA06-BEA-G24/L15/MA321.3038WDYFA06-BEA/L15/MAU= 24 VDC
WandfluhWDYFA06-BEA-G24/L15-M256321.3037WDYFA06-BEA/L15-M256U= 24 VDC
WandfluhWDYFA06-BEA-G24/L17/UL321.3034WDYFA06-BEA/L17/ULU= 24 VDC
WandfluhWDYFA06-BEA-G24/L9321.3030WDYFA06-BEA/L9U= 24 VDC
WandfluhWDYFA06-BEA-R115/L9321.3036WDYFA06-BEA/L9U= 115 VAC
WandfluhWDYFA06-BEA-y-G24/L15-Z604321.3025WDYFA06-BEA-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-BHA-G24/L17/UL321.6002WDYFA06-BHA/L17/ULU= 24 VDC
WandfluhWDYFA06-CB1-G110/L15-Z57319.0270WDYFA06-CB1/L15-Z57U= 110 VDC
WandfluhWDYFA06-CB1-G24/L15-Z57319.0206WDYFA06-CB1/L15-Z57U= 24 VDC
WandfluhWDYFA06-CB1-R115/L15-Z57319.0183WDYFA06-CB1/L15-Z57U= 115 VAC
WandfluhWDYFA06-CB1-R230/L15-Z57319.0276WDYFA06-CB1/L15-Z57U= 230 VAC
WandfluhWDYFA06-CB1-G24/L17/UL-Z57319.0261WDYFA06-CB1/L17/UL-Z57U= 24 VDC
WandfluhWDYFA06-CB1-G24/L9-Z57319.0188WDYFA06-CB1/L9-Z57U= 24 VDC
WandfluhWDYFA06-CB2-G24/L15319.1047WDYFA06-CB2/L15U= 24 VDC
WandfluhWDYFA06-CB2-X5/L15319.1072WDYFA06-CB2/L15Without coil
WandfluhWDYFA06-CB2-R230/L15-D1319.1071WDYFA06-CB2/L15-D1U= 230 VAC
WandfluhWDYFA06-CB2-G24/L15-H92319.1057WDYFA06-CB2/L15-H92U= 24 VDC
WandfluhWDYFA06-CB2-R115/L15-M187319.1067WDYFA06-CB2/L15-M187U= 115 VAC
WandfluhWDYFA06-CB2-G24/L17/UL319.1049WDYFA06-CB2/L17/ULU= 24 VDC
WandfluhWDYFA06-CB2-G24/L17/UL-D1319.1064WDYFA06-CB2/L17/UL-D1U= 24 VDC
WandfluhWDYFA06-CB2-G24/L9319.1054WDYFA06-CB2/L9U= 24 VDC
WandfluhWDYFA06-CB2-R115/L9319.1056WDYFA06-CB2/L9U= 115 VAC
WandfluhWDYFA06-CB2-R230/L9319.1066WDYFA06-CB2/L9U= 230 VAC
WandfluhWDYFA06-CB2-y-G24/L15-Z604319.1050WDYFA06-CB2-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-DB2-G24/L15319.2028WDYFA06-DB2/L15U= 24 VDC
WandfluhWDYFA06-DB2-X5/L15-D1319.2043WDYFA06-DB2/L15-D1Without coil
WandfluhWDYFA06-DB2-G24/L17/UL319.2035WDYFA06-DB2/L17/ULU= 24 VDC
WandfluhWDYFA06-DB2-G24/L17/UL-D1319.2042WDYFA06-DB2/L17/UL-D1U= 24 VDC
WandfluhWDYFA06-DB2-G24/L9319.2037WDYFA06-DB2/L9U= 24 VDC
WandfluhWDYFA06-DB2-y-G24/L17/UL-Z604319.2034WDYFA06-DB2-y/L17/UL-Z604U= 24 VDC
WandfluhWDYFA06-EA2-X5/L15319.3024WDYFA06-EA2/L15Without coil
WandfluhWDYFA06-EA2-G24/L17/UL319.3025WDYFA06-EA2/L17/ULU= 24 VDC
WandfluhWDYFA06-EA2-y-G24/L15-Z604319.3019WDYFA06-EA2-y/L15-Z604U= 24 VDC
WandfluhWDYFA06-FB2-G24/L15319.4045WDYFA06-FB2/L15U= 24 VDC
WandfluhWDYFA06-FB2-G24/L15-D1319.4061WDYFA06-FB2/L15-D1U= 24 VDC
WandfluhWDYFA06-FB2-G24/L17/UL319.4047WDYFA06-FB2/L17/ULU= 24 VDC
WandfluhWDYFA06-FB2-G24/L17/UL-D1319.4060WDYFA06-FB2/L17/UL-D1U= 24 VDC
WandfluhWDYFA06-FB2-y-G24/L15-Z604319.4057WDYFA06-FB2-y/L15-Z604U= 24 VDC
