Hydraulic data loggers | Webtec

Sensor capacity
Sensors output
Kit content
Display
Graphs on display
Article number
Stock
Link
Hydraulic data logger
Max number of sensors
2 sensors (4 channels)
Sensors output signals
SR
Kit content
Display
3.5" LCD
Graphs on display
No
Brand - Article No

Hydraulic data logger
WEBTEC
SRHPM4020050C

0
Please ask
+Info
Hydraulic data logger
Max number of sensors
3 sensors (6 channels)
Sensors output signals
CAN
Kit content
Display
3.5" LCD
Graphs on display
No
Brand - Article No

Hydraulic data logger
WEBTEC
SRHPM4030050CCAN

0
Please ask
+Info
Hydraulic data logger
Max number of sensors
3 sensors (6 channels)
Sensors output signals
CAN
Kit content
Datalogger + Pressure transmitter 0-600 bar + Connecting accessories
Display
3.5" LCD
Graphs on display
No
Brand - Article No

Hydraulic data logger
WEBTEC
SRHPM403005CANKIT

0
Please ask
+Info
Hydraulic data logger
Max number of sensors
3 sensors (6 channels)
Sensors output signals
CAN
Kit content
Datalogger + Pressure transmitter 0-600 bar (2) + Pressure transmitter 0-60 bar + Connecting accessories
Display
3.5" LCD
Graphs on display
No
Brand - Article No

Hydraulic data logger
WEBTEC
SRHPM403005CANKITMAX

0
Please ask
+Info
Hydraulic data logger
Max number of sensors
7 sensors (14 channels)
Sensors output signals
CAN + 4-20mA
Kit content
Display
4.3" touch screen
Graphs on display
Yes
Brand - Article No

Hydraulic data logger
WEBTEC
HPM5140CANA

0
Please ask
+Info
Hydraulic data logger
Max number of sensors
7 sensors (14 channels)
Sensors output signals
CAN + 4-20mA
Kit content
Datalogger + Pressure transmitter 0-600 bar + Connecting accessories
Display
4.3" touch screen
Graphs on display
Yes
Brand - Article No

Hydraulic data logger
WEBTEC
HPM5140CANAKIT

0
Please ask
+Info
Hydraulic data logger
Max number of sensors
7 sensors (14 channels)
Sensors output signals
CAN + 4-20mA
Kit content
Datalogger + Pressure transmitter 0-600 bar (2) + Pressure transmitter 0-60 bar + Connecting accessories
Display
4.3" touch screen
Graphs on display
Yes
Brand - Article No

Hydraulic data logger
WEBTEC
HPM5140CANAKITMAX

0
Please ask
+Info
Hydraulic data logger
Max number of sensors
48 channels (+48)
Sensors output signals
CAN + 4-20mA + SR
Kit content
Display
7" touch screen
Graphs on display
Yes
Brand - Article No

Hydraulic data logger
WEBTEC
HPM7000BS

0
Please ask
+Info

Hydraulic dataloggers

Webtec portable hydraulic data loggers

Hydraulic data loggers are electronic devices that record hydraulic measurements over a period of time. Typically, recorded data is coming from flow, pressure and temperature sensors. Hydraulic data loggers can also transmit the recorded values to a PC for further analysis, graphs and reports. Hydraulic data loggers are designed to be portable and easy to use thanks to digital displays.

Webtec HPM4000 portable hydraulic data loggers

The HPM4000 data logger is the ideal simple device for hydraulic fault prevention and diagnostics. This basic model enables to connect simultaneously up to 3 Webtec CAN sensors with plug and play functionality, or 2 Webtec SR sensors also with plug and play functionality.

The HPM4000 displays and exports measurements to a PC for further analysis with the software HPMComm (compatible with Windows), which is included free-of-charge with all Webtec HPM devices.

The HPM4000 datalogger displays actual values of flow, pressure, peak pressure and temperature but also calculates differential pressure and hydraulic power.

Webtec HPM5000 portable hydraulic data logger

The Webtec HPM5000 is a mid-range, portable hydraulic data logger for measurments of hydraulic flow, pressure, temperature, power, etc.

It is designed for diagnostics and maintenance on mobile and industrial machinery and built to support technicians in tasks such as fault-finding, R&D testing and pre-dispatch inspections easily.

The 4.3" colour touchscreen is suitable for use with gloves, has large tactile buttons, and is housed in an IP65 rubberized case for protection against harsh environments.

Readings can be displayed in numerical or graphical mode.

The HPM5000 manages up to 14 channels simultaneously: 12 channels via 6 Webtec CAN sensors and 2 auxiliary analogue sensors, plus 2 addditional calculated channels.

The unit is equipped with USB-C for fast charging and data transmission, and USB-A for data storage via 4 GB stick.

Data can be exported to free PC software HPMComm 7.6 for curve analysis, performance evaluation, and generating test certificates.

Connecting via USB-C allows real-time data streaming to a PC.

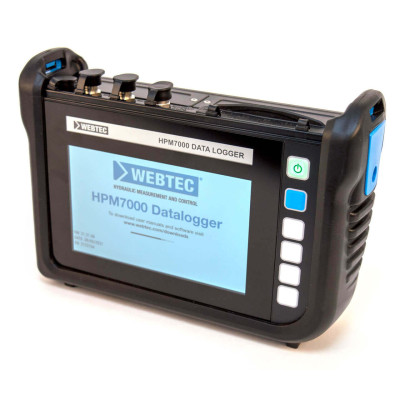

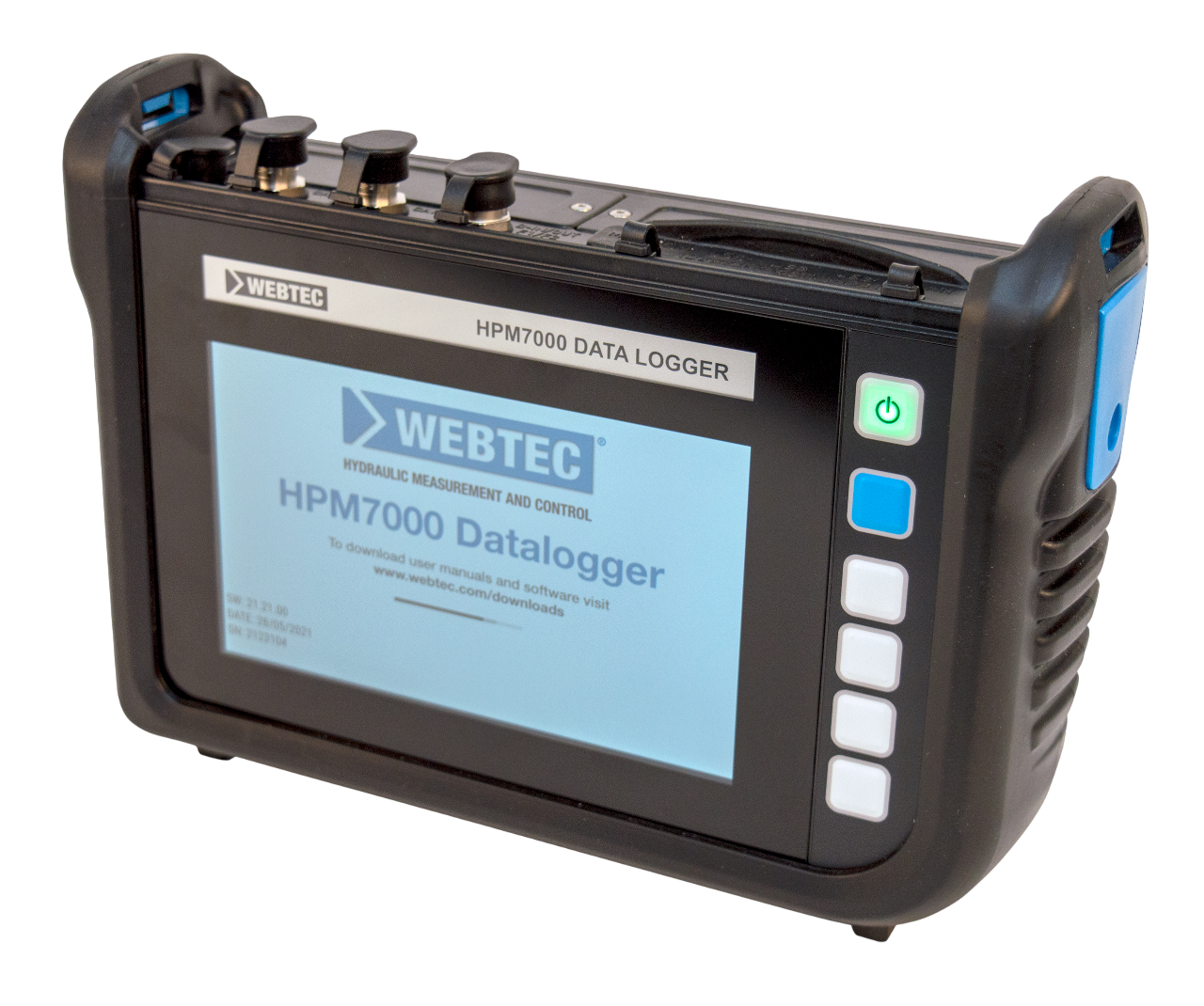

Webtec HPM7000 portable hydraulic data logger

The HPM7000 is a high versatile portable hydraulic datalogger and the evolution of the HPM6000. It is ideal for diagnostic testing of hydraulic systems, or for use on hydraulic test benches, pre-dispatch inspections and R&D.

This Webtec data logger enables to connect simultaneously up to 48 Webtec CAN sensors with plug and play functionality. Alternatively, up to 5 External CANOpen sensors can be connected.

This hydraulic data logger includes also an additional dual-function input, which can be used as digital input or digital output. And by means of a software changeover it can also be configured as two frequency inputs.

Two additional input modules can be added by the user, upgrading the device to the most demanding applications.

Analog input module: it allows the connection to 3 Webtec SR sensors with plug and play functionality, and also includes a configurable input for standard analog sensors of current or voltage without automatic detection (e.g. 4-20mA / 0-10V).

CAN input module: it includes 2 passive CAN bus inputs, allowing connection up to 48 external sensors without automatic sensor recognition. It allows CAN, CANOpen, J1939 or any mixture of CAN protocols in a passive way (no power supply to the sensors from this module).

The large color touch display is suitable to use with gloves, and the large tactile buttons ensure operation even in adverse conditions. The screen can be configured to display the readings in numerical, bar graph, dials and graphical display mode.

All data can be exported to a PC with free-of-charge software HPMComm 7.5 for further analysis, storage or streaming. The HPM7000 can also be controlled and monitored remotely using the LAN connection and a VNC remote desktop application.

Webtec dataloggers

Webtec data loggers are manufactured in United Kingdom according to highest quality standards. Webtec hydraulic test equipment is designed for the most challenging applications, providing exceptional accuracy, reliability and durability. Please choose your Webtec datalogger with the filters offered in this website.

Hidramatic, Authorised Webtec Distributor

As an official Webtec distribution partner for more than three decades, Hidramatic offers expert support and a large stock of Webtec products to ensure fast deliveries. Please contact us to request a quote or technical consultation. We deliver worldwide.
