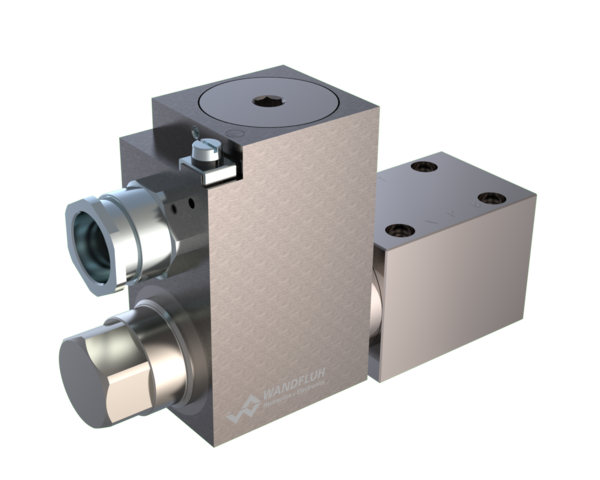

Ex d explosion-proof proportional spool valves stainless NG6, Wandfluh WDBFA06_K9
Ex d explosion-proof proportional spool valves stainless NG6, Wandfluh WDBFA06_K9
Mode
Proportional
Hydraulic function
Spool valve (directional)
Size
NG6
Qmax
30 L/min
Pmax
350 bar
Actuation
Ex d solenoid
Certificates
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Execution
Stainless steel
Protection class
IP65 / IP66 / IP67
Seal kit
251.2218 (NBR)
Valve configurator
WDBFA06
-
-
-
/
/
-
-
-
K9
| Type code examples | Internal number | Code on valve plate | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | WDBFA06-AC1-S-12-G12/L15-K9 | 484.1057 | WDBFA06-AC1-S-12/L15-K9 | U= 12 VDC |
| Wandfluh | WDBFA06-ACB-S-6-G24/L15-K9M248 | 484.1055 | WDBFA06-ACB-S-6/L15-K9M248 | U= 24 VDC |
| Wandfluh | WDBFA06-ADB-V-20-G12/L15-K9 | 484.2036 | WDBFA06-ADB-V-20/L15-K9 | U= 12 VDC |
| Wandfluh | WDBFA06-ADB-V-20-G24/L15-K9 | 484.2018 | WDBFA06-ADB-V-20/L15-K9 | U= 24 VDC |
| Wandfluh | WDBFA06-ADB-V-20-y-G12/L15-K9Z604 | 484.2035 | WDBFA06-ADB-V-20-y/L15-K9Z604 | U= 12 VDC |
