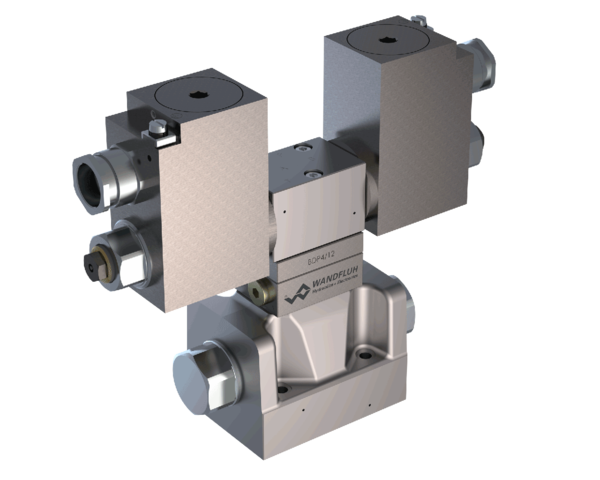

Ex d explosion-proof solenoid operated spool valves NG10, Wandfluh WVYFA10
Ex d explosion-proof solenoid operated spool valves NG10, Wandfluh WVYFA10
Mode
On/off
Hydraulic function
Spool valve (directional)
Size
NG10
Qmax
160 L/min
Pmax
350 bar
Actuation
Ex d solenoid
Certificates
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Execution
Standard
Protection class
IP65 / IP66 / IP67
Seal kit
251.2923 (NBR)
Valve configurator
WVYFA10
-
-
-
-
/
/
-
| Type code examples | Internal number | Code on valve plate | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | WVYFA10-AB1-ae-G24/L9-Q0,5 | 409.2054 | WVYFA10-AB1-ae/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AB1-ae-OV/L9 | 409.2055 | WVYFA10-AB1-ae-OV/L9 | Without pilot valve |
| Wandfluh | WVYFA10-AB1-pi-G24/L15-Q0,5 | 409.2057 | WVYFA10-AB1-pi/L15-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AB1-ti-G24/L15 | 409.2069 | WVYFA10-AB1-ti/L15 | U= 24 VDC |
| Wandfluh | WVYFA10-AB1-ti-G24/L15/MA-Q0,5 | 409.2077 | WVYFA10-AB1-ti/L15/MA-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AB1-ti-X5/L15-D1 | 409.2063 | WVYFA10-AB1-ti/L15-D1 | Without coil |
| Wandfluh | WVYFA10-AB1-ti-G24/L15-Q0,5 | 409.2042 | WVYFA10-AB1-ti/L15-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AB1-ti-R230/L15-Q0,5 | 409.2076 | WVYFA10-AB1-ti/L15-Q0,5 | U= 230 VAC |
| Wandfluh | WVYFA10-AB1-ti-R48/L9 | 409.2080 | WVYFA10-AB1-ti/L9 | U= 48 VAC |
| Wandfluh | WVYFA10-AB1-ti-X5/L9-D1Q0,5 | 409.2040 | WVYFA10-AB1-ti/L9-D1Q0,5 | Without coil |
| Wandfluh | WVYFA10-AB1-ti-G24/L9-Q0,5 | 409.2081 | WVYFA10-AB1-ti/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AB1-ti-R230/L9-Q0,5 | 409.2052 | WVYFA10-AB1-ti/L9-Q0,5 | U= 230 VAC |
| Wandfluh | WVYFA10-AB1-xi-OV/L15-Q0,5 | 409.2059 | WVYFA10-AB1-xi-OV/L15-Q0,5 | Without pilot valve |
| Wandfluh | WVYFA10-AB1-y-ti-G24/L15-Z604 | 409.2050 | WVYFA10-AB1-y-ti/L15-Z604 | U= 24 VDC |
| Wandfluh | WVYFA10-AB2-ti-G24/L15 | 409.2053 | WVYFA10-AB2-ti/L15 | U= 24 VDC |
| Wandfluh | WVYFA10-AB2-ti-X5/L9-D1Q0,5 | 409.2041 | WVYFA10-AB2-ti/L9-D1Q0,5 | Without coil |
| Wandfluh | WVYFA10-AB2-ti-G24/L9-Q0,5 | 409.2070 | WVYFA10-AB2-ti/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AB3-ti-X5/L15 | 409.2087 | WVYFA10-AB3-ti/L15 | Without coil |
| Wandfluh | WVYFA10-AC1-xe-G24/L9 | 409.1029 | WVYFA10-AC1-xe/L9 | U= 24 VDC |
| Wandfluh | WVYFA10-ACB-ti-G24/L15-D1Q0,5 | 409.1036 | WVYFA10-ACB-ti/L15-D1Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-ACB-ti-R230/L9 | 409.1031 | WVYFA10-ACB-ti/L9 | U= 230 VAC |
| Wandfluh | WVYFA10-ACB-ti-G24/L9-Q0,5 | 409.1028 | WVYFA10-ACB-ti/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-ACB-y-ti-G24/L15-Z604 | 409.1030 | WVYFA10-ACB-y-ti/L15-Z604 | U= 24 VDC |
| Wandfluh | WVYFA10-AD1-ae-G24/L9-Q0,5 | 409.2061 | WVYFA10-AD1-ae/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AD1-ti-G24/L9 | 409.2078 | WVYFA10-AD1-ti/L9 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ae-G24/L17/UL | 409.2071 | WVYFA10-ADB-ae/L17/UL | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ae-G24/L9 | 409.2083 | WVYFA10-ADB-ae/L9 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ae-G24/L9-Q0,5 | 409.2045 | WVYFA10-ADB-ae/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-G24/L15 | 409.2056 | WVYFA10-ADB-ti/L15 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-G24/L15/MA-Q0,5 | 409.2064 | WVYFA10-ADB-ti/L15/MA-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-G24/L15-D1Q0,5 | 409.2075 | WVYFA10-ADB-ti/L15-D1Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-X5/L15-D1Q0,5 | 409.2073 | WVYFA10-ADB-ti/L15-D1Q0,5 | Without coil |
| Wandfluh | WVYFA10-ADB-ti-G24/L15-Q0,5 | 409.2051 | WVYFA10-ADB-ti/L15-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-X5/L15-Q0,5 | 409.2066 | WVYFA10-ADB-ti/L15-Q0,5 | Without coil |
| Wandfluh | WVYFA10-ADB-ti-G24/L17/UL-D1 | 409.2079 | WVYFA10-ADB-ti/L17/UL-D1 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-G24/L17/UL-Q0,5 | 409.2060 | WVYFA10-ADB-ti/L17/UL-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-G24/L9 | 409.2084 | WVYFA10-ADB-ti/L9 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-G24/L9-D1 | 409.2074 | WVYFA10-ADB-ti/L9-D1 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-X5/L9-D1Q0,5 | 409.2072 | WVYFA10-ADB-ti/L9-D1Q0,5 | Without coil |
| Wandfluh | WVYFA10-ADB-ti-G24/L9-M187 | 409.2067 | WVYFA10-ADB-ti/L9-M187 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-G24/L9-Q0,5 | 409.2046 | WVYFA10-ADB-ti/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-ADB-ti-R115/L9-Q0,5 | 409.2049 | WVYFA10-ADB-ti/L9-Q0,5 | U= 115 VAC |
| Wandfluh | WVYFA10-ADB-ti-OV/L9 | 409.2085 | WVYFA10-ADB-ti-OV/L9 | Without pilot valve |
| Wandfluh | WVYFA10-AE1-ti-G24/L9-Q0,5 | 409.3012 | WVYFA10-AE1-ti/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AEB-ti-G24/L15 | 409.3013 | WVYFA10-AEB-ti/L15 | U= 24 VDC |
| Wandfluh | WVYFA10-AEB-ti-G24/L15-Q0,5 | 409.3018 | WVYFA10-AEB-ti/L15-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AEB-ti-G24/L17/UL-Q0,5 | 409.3016 | WVYFA10-AEB-ti/L17/UL-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AEB-ti-G24/L9 | 409.3014 | WVYFA10-AEB-ti/L9 | U= 24 VDC |
| Wandfluh | WVYFA10-AEB-ti-R230/L9 | 409.3017 | WVYFA10-AEB-ti/L9 | U= 230 VAC |
| Wandfluh | WVYFA10-AEB-ti-G24/L9-Q0,5 | 409.3015 | WVYFA10-AEB-ti/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-AEB-ti-R115/L9-Q0,5 | 409.3011 | WVYFA10-AEB-ti/L9-Q0,5 | U= 115 VAC |
| Wandfluh | WVYFA10-AFB-ti-G24/L15 | 409.4010 | WVYFA10-AFB-ti/L15 | U= 24 VDC |
| Wandfluh | WVYFA10-CB2-ti-G24/L15 | 409.1032 | WVYFA10-CB2-ti/L15 | U= 24 VDC |
| Wandfluh | WVYFA10-DB2-ti-X5/L15-D1 | 409.2068 | WVYFA10-DB2-ti/L15-D1 | Without coil |
| Wandfluh | WVYFA10-DB2-ti-G24/L9-Q0,5 | 409.2047 | WVYFA10-DB2-ti/L9-Q0,5 | U= 24 VDC |
| Wandfluh | WVYFA10-FB2-ti-X5/L15 | 409.4009 | WVYFA10-FB2-ti/L15 | Without coil |
